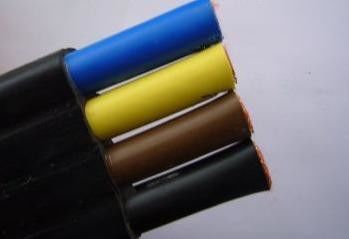

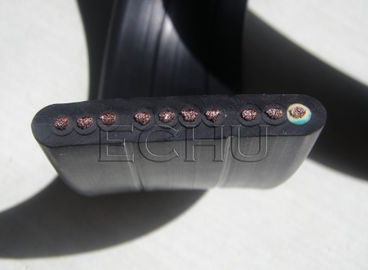

Flat Flexible Traveling Cable for Crane or Conveyor Black Jacket with Mixed structure

Certificación
De buena calidad Cable solar del picovoltio para las ventas
De buena calidad Cable solar del picovoltio para las ventas
Estoy en línea para chatear ahora

Flat Flexible Traveling Cable for Crane or Conveyor Black Jacket with Mixed structure

China Flat Flexible Traveling Cable for Crane or Conveyor Black Jacket with Mixed structure proveedor
Flat Flexible Traveling Cable for Crane or Conveyor Black Jacket with Mixed structure proveedor Flat Flexible Traveling Cable for Crane or Conveyor Black Jacket with Mixed structure proveedor Flat Flexible Traveling Cable for Crane or Conveyor Black Jacket with Mixed structure proveedor Flat Flexible Traveling Cable for Crane or Conveyor Black Jacket with Mixed structure proveedor Flat Flexible Traveling Cable for Crane or Conveyor Black Jacket with Mixed structure proveedor Flat Flexible Traveling Cable for Crane or Conveyor Black Jacket with Mixed structure proveedor Flat Flexible Traveling Cable for Crane or Conveyor Black Jacket with Mixed structure proveedor

Ampliación de imagen :  Flat Flexible Traveling Cable for Crane or Conveyor Black Jacket with Mixed structure

Datos del producto:

Lugar de origen: CHINA
Nombre de la marca: ECHU
Certificación: CE
Número de modelo: YFFB, H07VVH6-F, H07VVD3H6-F

Pago y Envío Términos:

Cantidad de orden mínima: los 300m
Precio: USD0.2-USD10.178/M
Detalles de empaquetado: carrete de la madera contrachapada
Tiempo de entrega: 10days
Condiciones de pago: T/T, Western Union
Capacidad de la fuente: 10000km/week
Contacto
Descripción detallada del producto
Color: Negro, gris, anaranjado Conductor: CRNA de cobre extrafino de los filamentos. a VDE0295, class5
Instalación: Flexible/mueble Estándar: CRNA. a VDE0482, a part265-2-1 respectivamente EN50265-2-1 y a IEC60332-1
Voltaje: 300/500V, 450/750V, 600/1000V Uso: como cable de la conexión/de control para las grúas y los transportadores

Flat Flexible Traveling Cable for Crane or Conveyor Black Jacket with Mixed structure



As connecting and control cable for cranes and conveyers. It is suitable for the places of railway stations, crane and other related products
Structure:
Conductor: Superfine copper strands acc. To VDE0295, CLASS 5
Insulation: Mixed PVC, resistant to oil, flame resistance and self-extinguishing
Colour: Acc. To 227IEC(brown, blue, black, green/yellow)
5cores or more with black number with white digital coding
Sheath: Butadiene-acrylonitrile rubber; Resistant to oil, flame retardant and self-extinguishing;
Colour: Black(RAL9005)or grey (RAL7001)
Standard: Acc. To VDE 0482, part 265-2-1 resp. EN 50265-2-1 and IEC 60332-1.
Technical data:
Rated voltage: ≤ 1.5mm 300/500V >1.5mm: 450/750V
Test voltage: ≤ 1.5mm 2500V >1.5mm: 3000V
Mimimum bending radius: 0.3m<L<0.6m
Burning vertically test: GB/T1 8380.1-2001, IEC 60332-1: 1993 test
Passedstandard: GB5023.6, IEC60227-6, EN 50214.
Used under the normal conditions. The temperature of conductor is lower than 70° C
Temperature range: -15° C to +70° C
Cables are reommended for installations where the suspended length doesn't exceed 80m; And the speed of travel does not exceed 4m/s
If it is more than this, with steel.



Size 2 to 60cores or more, size 0.5sqmm to 400sqmm.....

Type Cores Sections(mm2) width(mm) thickness(mm) Denity(kg/km) Shape
YFFB 2 1.25 9.0± 1.0 6.2± 0.5 100.5 LINE TYPE
YFFB 3 1.25 11.9± 1.0 6.2± 0.5 136.7 LINE TYPE
YFFB 4 1.25 15.8± 1.0 6.2± 0.5 181.6 LINE TYPE
YFFB 5 1.25 19.7± 1.0 6.2± 0.5 226.6 LINE TYPE
YFFB 6 1.25 22.6± 1.5 6.2± 0.5 262.8 LINE TYPE
YFFB 7 1.25 25.5± 1.5 6.2± 0.5 299 LINE TYPE
YFFB 8 1.25 28.4± 1.5 6.2± 0.5 335.2 LINE TYPE
YFFB 9 1.25 31.3± 2.0 6.2± 0.5 371.4 LINE TYPE
YFFB 10 1.25 34.2± 2.0 6.2± 0.5 407.6 LINE TYPE
YFFB 11 1.25 37.1± 2.0 6.2± 0.5 443.9 LINE TYPE
YFFB 12 1.25 40.0± 2.0 6.2± 0.5 480.1 LINE TYPE
YFFB 13 1.25 42.9± 2.0 6.2± 0.5 516.3 LINE TYPE
YFFB 14 1.25 46.8± 2.0 6.2± 0.5 561.2 LINE TYPE
YFFB 15 1.25 49.7± 2.0 6.2± 0.5 597.4 LINE TYPE
YFFB 16 1.25 52.6± 2.0 6.2± 0.5 633.6 LINE TYPE
YFFB 17 1.25 55.5± 2.0 6.2± 0.5 669.9 LINE TYPE
YFFB 18 1.25 59.4± 2.0 6.2± 0.5 714.8 LINE TYPE
YFFB 19 1.25 62.3± 2.5 6.2± 0.5 751 LINE TYPE
YFFB 20 1.25 65.2± 2.5 6.2± 0.5 787.2 LINE TYPE
YFFB 2 1.5 9.3± 1.0 5.8± 0.5 111.3 LINE TYPE
YFFB 3 1.5 12.3± 1.0 5.8± 0.5 148.5 LINE TYPE
YFFB 4 1.5 16.3± 1.0 5.8± 0.5 193.8 LINE TYPE
YFFB 5 1.5 20.3± 1.5 5.8± 0.5 239.2 LINE TYPE
YFFB 6 1.5 23.3± 1.5 5.8± 0.5 276.3 LINE TYPE
YFFB 7 1.5 26.3± 1.5 5.8± 0.5 313.5 LINE TYPE
YFFB 8 1.5 29.3± 1.5 5.8± 0.5 350.6 LINE TYPE
YFFB 9 1.5 32.3± 2.0 5.8± 0.5 387.7 LINE TYPE
YFFB 10 1.5 35.3± 2.0 5.8± 0.5 424.9 LINE TYPE
YFFB 11 1.5 38.3± 2.0 5.8± 0.5 462 LINE TYPE
YFFB 12 1.5 41.3± 2.0 5.8± 0.5 499.2 LINE TYPE
YFFB 13 1.5 44.3± 2.0 5.8± 0.5 536.3 LINE TYPE
YFFB 14 1.5 48.3± 2.0 5.8± 0.5 581.7 LINE TYPE
YFFB 15 1.5 51.3± 2.0 5.8± 0.5 618.8 LINE TYPE
YFFB 16 1.5 54.3± 2.0 5.8± 0.5 655.9 LINE TYPE

Flat Flexible Traveling Cable for Crane or Conveyor Black Jacket with Mixed structure
