Cable flexible plano especial del elevador que viaja con el certificado del CE en el color gris, negro, anaranjado, TVVBG, TVVBP, TVVBPG
Datos del producto:
Pago y Envío Términos:
|
Descripción detallada del producto
| El color: | Naranja | Válvulas: | El valor de las emisiones de CO2 |
|---|---|---|---|
| Instalación: | Flexible | aislamiento: | El PVC |
| El chaqueta: | PVC flexible |
Cable de elevador de viaje plano y flexible con cable de cámara de televisión en color gris
Cables de viaje planos
Cables de ascensor planos
Se aplicará el procedimiento siguiente:
H07VVH6-F
Aplicación de cables de viaje planos:
Como cable de control y señal para ascensores y piezas móviles de máquinas, su radio de flexión es menor en comparación con los cables redondos debido a los núcleos o haces blindados estrechamente empaquetados.Se puede instalar en habitaciones secas y húmedas.
Cables de viaje planos Propiedades:
La cubierta exterior es muy resistente al aceite y al líquido de refrigeración.
Las normas: GB5023.6, IEC 60227-6, EN 50214

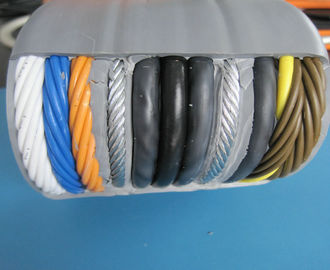

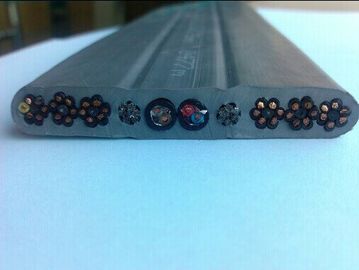

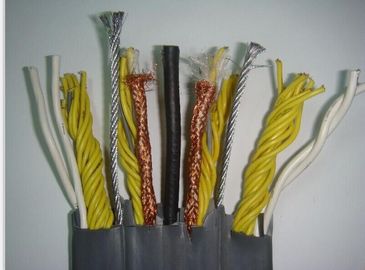

Estructura:
Conductor: finas hebras de alambre de cobre desnudo,
Acceso a VDE0295 Clase 5
Aislamiento: PVC especial
Color: amarillo, blanco, naranja con número negro con código digital blanco
Cuaderno: cuerda de acero
Envase exterior: PVC flexible, resistente al frío y a la llama
Color: gris ((RAL7001)
Datos técnicos:
Válvulas de carga de las máquinas de ensayo y de las máquinas de ensayo
Válvula de ensayo: 2500 V
Radius mínimo de flexión: 0,3 m
Prueba de combustión vertical: GB/T18380.1-2001
Se aprueba el ensayo IEC60332-1.1 993
Se utiliza en condiciones normales, cuando la temperatura del conductor es inferior a 70oC
Rango de temperatura:
-15oC a 70oC
La longitud de la suspensión libre TVVB (paralela) no deberá exceder los 35 metros y la velocidad de elevación 1,6 m/s.
La longitud de la suspensión libre TVVB ((interwist) no deberá exceder de 80 metros y la velocidad de vida no deberá exceder de 4 m/s.
| El tipo | Tamaño | Ancho y grosor (mm) |
| TVVB2G | 75-5 más 2X1.0 | 22.9±1.0 × 9.3±0.5 |
| TVVB2G | 75-5 más 2X0.75 | 22.9±1.0 × 9.3±0.5 |
| TVVB1G | 75-3 más 2X0.75 | 17.0±1.0×6.5±0. El tiempo de espera de las máquinas de ensayo5 |
| TVVB2G | SYV75-5-2 | 13.3±1.0×7.1±0. No se puede utilizar.5 |
| SYV2G | 75-5-2 | 8.1±0,5×3,7±0. El objetivo es:2 |
| El tipo | el núcleo | sección transversal | Ancho (mm) | El espesor ((mm) |
| TVVB | 2 | 0.5 | 7.3 ± 1.0 | 4.1 ± 0.5 |
| TVVB | 3 | 0.5 | 9.3 ± 1.0 | 4.1 ± 0.5 |
| TVVB | 4 | 0.5 | 12.3 ± 1.0 | 4.1 ± 0.5 |
| TVVB | 5 | 0.5 | 15.2 ± 1.0 | 4.1 ± 0.5 |
| TVVB | 6 | 0.5 | 17.2 ± 1.0 | 4.1 ± 0.5 |
| TVVB | 7 | 0.5 | 19.2 ± 1.0 | 4.1 ± 0.5 |
| TVVB | 8 | 0.5 | 21.2 ± 1.5 | 4.1 ± 0.5 |
| TVVB | 9 | 0.5 | 23.2 ± 1.5 | 4.1 ± 0.5 |
| TVVB | 10 | 0.5 | 25.2 ± 1.5 | 4.1 ± 0.5 |
| TVVB | 11 | 0.5 | 27.2 ± 1.5 | 4.1 ± 0.5 |
| TVVB | 12 | 0.5 | 29.2 ± 1.5 | 4.1 ± 0.5 |
| TVVB | 13 | 0.5 | 31.2 ± 2.0 | 4.1 ± 0.5 |
| TVVB | 14 | 0.5 | 34.2 ± 2.0 | 4.1 ± 0.5 |
| TVVB | 15 | 0.5 | 36.2 ± 2.0 | 4.1 ± 0.5 |
| TVVB | 16 | 0.5 | 38.2 ± 2.0 | 4.1 ± 0.5 |
| TVVB | 17 | 0.5 | 40.2 ± 2.0 | 4.1 ± 0.5 |
| TVVB | 18 | 0.5 | 43.1 ± 2.0 | 4.1 ± 0.5 |
| TVVB | 19 | 0.5 | 45.1 ± 2.0 | 4.1 ± 0.5 |
| TVVB | 20 | 0.5 | 47.1 ± 2.0 | 4.1 ± 0.5 |
| TVVB | 21 | 0.5 | 49.1 ± 2.0 | 4.1 ± 0.5 |
| TVVB | 22 | 0.5 | 51.1 ± 2.0 | 4.1 ± 0.5 |
| TVVB | 23 | 0.5 | 53.1 ± 2.0 | 4.1 ± 0.5 |
| TVVB | 24 | 0.5 | 56.1 ± 2.0 | 4.1 ± 0.5 |
| TVVB | 24 | 0.5 | 31.3 ± 2.0 | 8.4 ± 0.5 |
| TVVB | 30 | 0.5 | 39.9 ± 2.0 | 7.8 ± 0.5 |
| TVVB | 36 | 0.5 | 43.5 ± 2.0 | 8.4 ± 0.5 |
| TVVB | 40 | 0.5 | 50.7 ± 2.0 | 7.8 ± 0.5 |
| TVVB | 42 | 0.5 | 49.5 ± 2.5 | 8.4 ± 0.5 |
| TVVB | 48 | 0.5 | 55.5 ± 2.5 | 8.4 ± 0.5 |
| TVVB | 54 | 0.5 | 61.5 ± 2.5 | 8.4 ± 0.5 |
| TVVB | 60 | 0.5 | 67.5 ± 2.5 | 8.4 ± 0.5 |
| TVVB | 66 | 0.5 | 73.5 ± 2.5 | 8.4 ± 0.5 |
| TVVB ((G) | 2 | 0.5 | 12.8 ± 1.0 | 4.1 ± 0.5 |
| TVVB ((G) | 3 | 0.5 | 14.8 ± 1.0 | 4.1 ± 0.5 |
| TVVB ((G) | 4 | 0.5 | 17.8 ± 1.0 | 4.1 ± 0.5 |
| TVVB ((G) | 5 | 0.5 | 20.7 ± 1.5 | 4.1 ± 0.5 |
| TVVB ((G) | 6 | 0.5 | 21.8 ± 1.5 | 4.1 ± 0.5 |
| TVVB ((G) | 7 | 0.5 | 24.7 ± 1.5 | 4.1 ± 0.5 |
| TVVB ((G) | 8 | 0.5 | 26.7 ± 1.5 | 4.1 ± 0.5 |
| TVVB ((G) | 9 | 0.5 | 28.7 ± 1.5 | 4.1 ± 0.5 |
| TVVB ((G) | 10 | 0.5 | 30.7 ± 2.0 | 4.1 ± 0.5 |
| TVVB ((G) | 11 | 0.5 | 32.7 ± 2.0 | 4.1 ± 0.5 |
| TVVB ((G) | 12 | 0.5 | 34.7 ± 2.0 | 4.1 ± 0.5 |
| TVVB ((G) | 13 | 0.5 | 37.4 ± 2.0 | 4.1 ± 0.5 |
| TVVB ((G) | 14 | 0.5 | 40.3 ± 2.0 | 4.1 ± 0.5 |
| TVVB ((G) | 15 | 0.5 | 42.3 ± 2.0 | 4.1 ± 0.5 |
| TVVB ((G) | 16 | 0.5 | 44.3 ± 2.0 | 4.1 ± 0.5 |
| TVVB ((G) | 17 | 0.5 | 46.3 ± 2.0 | 4.1 ± 0.5 |
| TVVB ((G) | 18 | 0.5 | 49.3 ± 2.0 | 4.1 ± 0.5 |
| TVVB ((G) | 19 | 0.5 | 51.3 ± 2.0 | 4.1 ± 0.5 |
| TVVB ((G) | 20 | 0.5 | 53.3 ± 2.0 | 4.1 ± 0.5 |
| TVVB ((G) | 21 | 0.5 | 55.3 ± 2.0 | 4.1 ± 0.5 |
| TVVB ((G) | 22 | 0.5 | 57.3 ± 2.0 | 4.1 ± 0.5 |
| TVVB ((G) | 23 | 0.5 | 59.3 ± 2.0 | 4.1 ± 0.5 |
| TVVB ((G) | 24 | 0.5 | 62.2 ± 2.0 | 4.1 ± 0.5 |
| TVVB ((G) | 24 | 0.5 | 40.3 ± 2.0 | 8.4 ± 0.5 |
| TVVB ((G) | 30 | 0.5 | 48.1 ± 2.0 | 7.8 ± 0.5 |
| TVVB ((G) | 36 | 0.5 | 51.7 ± 2.0 | 8.4 ± 0.5 |
| TVVB ((G) | 40 | 0.5 | 58.9 ± 2.5 | 7.8 ± 0.5 |
| TVVB ((G) | 42 | 0.5 | 58.7 ± 2.0 | 8.4 ± 0.5 |
| TVVB ((G) | 48 | 0.5 | 64.7 ± 2.5 | 8.4 ± 0.5 |
| TVVB ((G) | 54 | 0.5 | 70.7 ± 2.5 | 8.4 ± 0.5 |
| TVVB ((G) | 60 | 0.5 | 76.7 ± 2.5 | 8.4 ± 0.5 |
| TVVB ((G) | 66 | 0.5 | 82.7 ± 2.5 | 8.4 ± 0.5 |
| TVVB | 2 | 0.75 | 8.0 ± 1.0 | 4.2 ± 0.5 |
| TVVB | 3 | 0.75 | 10.4 ± 1.0 | 4.2 ± 0.5 |
| TVVB | 4 | 0.75 | 13.7 ± 1.0 | 4.2 ± 0.5 |
| TVVB | 5 | 0.75 | 17.1 ± 1.0 | 4.2 ± 0.5 |
| TVVB | 6 | 0.75 | 19.4 ± 1.0 | 4.2 ± 0.5 |
| TVVB | 7 | 0.75 | 21.8 ± 1.5 | 4.2 ± 0.5 |
| TVVB | 8 | 0.75 | 24.1 ± 1.5 | 4.2 ± 0.5 |
| TVVB | 9 | 0.75 | 26.5±1.5 | 4.2 ± 0.5 |
| TVVB | 10 | 0.75 | 28.8 ± 1.5 | 4.2 ± 0.5 |
| TVVB | 11 | 0.75 | 31.2 ± 2.0 | 4.2 ± 0.5 |
| TVVB | 12 | 0.75 | 33.5 ± 2.0 | 4.2 ± 0.5 |
| TVVB | 13 | 0.75 | 35.9 ± 2.0 | 4.2 ± 0.5 |
| TVVB | 14 | 0.75 | 39.2 ± 2.0 | 4.2 ± 0.5 |
| TVVB | 15 | 0.75 | 41.6 ± 2.0 | 4.2 ± 0.5 |
| TVVB | 16 | 0.75 | 43.9 ± 2.0 | 4.2 ± 0.5 |
| TVVB | 17 | 0.75 | 46.3 ± 2.0 | 4.2 ± 0.5 |
| TVVB | 18 | 0.75 | 49.6 ± 2.0 | 4.2 ± 0.5 |
| TVVB | 19 | 0.75 | 52.0 ± 2.0 | 4.2 ± 0.5 |
| TVVB | 20 | 0.75 | 54.3 ± 2.0 | 4.2 ± 0.5 |
| TVVB | 21 | 0.75 | 56.7 ± 2.0 | 4.2 ± 0.5 |
| TVVB | 22 | 0.75 | 59.0 ± 2.0 | 4.2 ± 0.5 |
| TVVB | 23 | 0.75 | 61.4 ± 2.5 | 4.2 ± 0.5 |
| TVVB | 24 | 0.75 | 64.7 ± 2.5 | 4.2 ± 0.5 |
| TVVB | 24 | 0.75 | 31.3 ± 2.0 | 8.4 ± 0.5 |
| TVVB | 30 | 0.75 | 39.9 ± 2.0 | 7.8 ± 0.5 |
| TVVB | 36 | 0.75 | 43.5 ± 2.0 | 8.4 ± 0.5 |
| TVVB | 40 | 0.75 | 50.7 ± 2.0 | 7.8 ± 0.5 |
| TVVB | 42 | 0.75 | 49.5 ± 2.0 | 8.4 ± 0.5 |
| TVVB | 48 | 0.75 | 55.5 ± 2.0 | 8.4 ± 0.5 |
| TVVB | 54 | 0.75 | 61.5 ± 2.5 | 8.4 ± 0.5 |
| TVVB | 60 | 0.75 | 67.5 ± 2.5 | 8.4 ± 0.5 |
| TVVB | 66 | 0.75 | 73.5 ± 2.5 | 8.4 ± 0.5 |
| TVVB ((G) | 2 | 0.75 | 13.5±1.0 | 4.2 ± 0.5 |
| TVVB ((G) | 3 | 0.75 | 15.9 ± 1.0 | 4.2 ± 0.5 |
| TVVB ((G) | 4 | 0.75 | 19.2 ± 1.0 | 4.2 ± 0.5 |
| TVVB ((G) | 5 | 0.75 | 22.6 ± 1.5 | 4.2 ± 0.5 |
| TVVB ((G) | 6 | 0.75 | 23.9 ± 1.5 | 4.2 ± 0.5 |
| TVVB ((G) | 7 | 0.75 | 27.3 ± 1.5 | 4.2 ± 0.5 |
| TVVB ((G) | 8 | 0.75 | 29.6 ± 1.5 | 4.2 ± 0.5 |
| TVVB ((G) | 9 | 0.75 | 32.0 ± 2.0 | 4.2 ± 0.5 |
| TVVB ((G) | 10 | 0.75 | 34.3 ± 2.0 | 4.2 ± 0.5 |
| TVVB ((G) | 11 | 0.75 | 36.7 ± 2.0 | 4.2 ± 0.5 |
| TVVB ((G) | 12 | 0.75 | 39.0 ± 2.0 | 4.2 ± 0.5 |
| TVVB ((G) | 13 | 0.75 | 42.0 ± 2.0 | 4.2 ± 0.5 |
| TVVB ((G) | 14 | 0.75 | 45.4 ± 2.0 | 4.2 ± 0.5 |
| TVVB ((G) | 15 | 0.75 | 47.7 ± 2.0 | 4.2 ± 0.5 |
| TVVB ((G) | 16 | 0.75 | 50.1 ± 2.0 | 4.2 ± 0.5 |
| TVVB ((G) | 17 | 0.75 | 52.4 ± 2.0 | 4.2 ± 0.5 |
| TVVB ((G) | 18 | 0.75 | 55.8 ± 2.0 | 4.2 ± 0.5 |
| TVVB ((G) | 19 | 0.75 | 58.1 ± 2.0 | 4.2 ± 0.5 |
| TVVB ((G) | 20 | 0.75 | 60.5 ± 2.5 | 4.2 ± 0.5 |
| TVVB ((G) | 21 | 0.75 | 62.8 ± 2.5 | 4.2 ± 0.5 |
| TVVB ((G) | 22 | 0.75 | 65.2 ± 2.5 | 4.2 ± 0.5 |
| TVVB ((G) | 23 | 0.75 | 67.5 ± 2.5 | 4.2 ± 0.5 |
| TVVB ((G) | 24 | 0.75 | 70.9 ± 2.5 | 4.2 ± 0.5 |
| TVVB ((G) | 24 | 0.75 | 40.3 ± 2.0 | 8.4 ± 0.5 |
| TVVB ((G) | 30 | 0.75 | 48.1 ± 2.0 | 7.8 ± 0.5 |
| TVVB ((G) | 36 | 0.75 | 51.7 ± 2.0 | 8.4 ± 0.5 |
| TVVB ((G) | 40 | 0.75 | 58.9 ± 2.0 | 7.8 ± 0.5 |
| TVVB ((G) | 42 | 0.75 | 58.7 ± 2.0 | 8.4 ± 0.5 |
| TVVB ((G) | 48 | 0.75 | 64.7 ± 2.5 | 8.4 ± 0.5 |
| TVVB ((G) | 54 | 0.75 | 70.7 ± 2.5 | 8.4 ± 0.5 |
| TVVB ((G) | 60 | 0.75 | 76.7 ± 2.5 | 8.4 ± 0.5 |
| TVVB | 2 | 1 | 8.4 ± 1.0 | 4.4 ± 0.5 |
| TVVB | 3 | 1 | 11.0 ± 1.0 | 4.4 ± 0.5 |
| TVVB | 4 | 1 | 14.5±1.0 | 4.4 ± 0.5 |
| TVVB | 5 | 1 | 18.1 ± 1.0 | 4.4 ± 0.5 |
| TVVB | 6 | 1 | 20.6 ± 1.5 | 4.4 ± 0.5 |
| TVVB | 7 | 1 | 23.2 ± 1.5 | 4.4 ± 0.5 |
| TVVB | 8 | 1 | 25.7 ± 1.5 | 4.4 ± 0.5 |
| TVVB | 9 | 1 | 28.3 ± 1.5 | 4.4 ± 0.5 |
| TVVB | 10 | 1 | 30.8 ± 2.0 | 4.4 ± 0.5 |
| TVVB | 11 | 1 | 33.4 ± 2.0 | 4.4 ± 0.5 |
| TVVB | 12 | 1 | 35.9 ± 2.0 | 4.4 ± 0.5 |
| TVVB | 13 | 1 | 38.5 ± 2.0 | 4.4 ± 0.5 |
| TVVB | 14 | 1 | 42.0 ± 2.0 | 4.4 ± 0.5 |
| TVVB | 15 | 1 | 44.6 ± 2.0 | 4.4 ± 0.5 |
| TVVB | 16 | 1 | 47.1 ± 2.0 | 4.4 ± 0.5 |
| TVVB | 17 | 1 | 49.7 ± 2.0 | 4.4 ± 0.5 |
| TVVB | 18 | 1 | 53.2 ± 2.0 | 4.4 ± 0.5 |
| TVVB | 19 | 1 | 55.8 ± 2.0 | 4.4 ± 0.5 |
| TVVB | 20 | 1 | 58.3 ± 2.0 | 4.4 ± 0.5 |
| TVVB | 21 | 1 | 60.9 ± 2.5 | 4.4 ± 0.5 |
| TVVB | 22 | 1 | 63.4 ± 2.5 | 4.4 ± 0.5 |
| TVVB | 23 | 1 | 66.0 ± 2.5 | 4.4 ± 0.5 |
| TVVB | 24 | 1 | 69.5 ± 2.5 | 4.4 ± 0.5 |
| TVVB | 24 | 1 | 37.9 ± 2.0 | 10.5±1.0 |
| TVVB | 30 | 1 | 48.8 ± 2.0 | 9.7 ± 0.5 |
| TVVB | 36 | 1 | 53.4 ± 2.0 | 10.5±1.0 |
| TVVB | 40 | 1 | 62.6 ± 2.5 | 9.7 ± 0.5 |
| TVVB | 42 | 1 | 61.1 ± 2.5 | 10.5±1.0 |
| TVVB | 48 | 1 | 68.7 ± 2.5 | 10.5±1.0 |
| TVVB | 54 | 1 | 76.4 ± 2.5 | 10.5±1.0 |
| TVVB | 60 | 1 | 84.0 ± 2.5 | 10.5±1.0 |
| TVVB | 66 | 1 | 91.7 ± 2.5 | 10.5±1.0 |
| TVVB ((G) | 2 | 1 | 13.9 ± 1.0 | 4.4 ± 0.5 |
| TVVB ((G) | 3 | 1 | 16.5±1.0 | 4.4 ± 0.5 |
| TVVB ((G) | 4 | 1 | 20.0 ± 1.0 | 4.4 ± 0.5 |
| TVVB ((G) | 5 | 1 | 23.6 ± 1.5 | 4.4 ± 0.5 |
| TVVB ((G) | 6 | 1 | 25.1 ± 1.5 | 4.4 ± 0.5 |
| TVVB ((G) | 7 | 1 | 28.7 ± 1.5 | 4.4 ± 0.5 |
| TVVB ((G) | 8 | 1 | 31.2 ± 2.0 | 4.4 ± 0.5 |
| TVVB ((G) | 9 | 1 | 33.8 ± 2.0 | 4.4 ± 0.5 |
| TVVB ((G) | 10 | 1 | 36.3 ± 2.0 | 4.4 ± 0.5 |
| TVVB ((G) | 11 | 1 | 38.9 ± 2.0 | 4.4 ± 0.5 |
| TVVB ((G) | 12 | 1 | 41.4 ± 2.0 | 4.4 ± 0.5 |
| TVVB ((G) | 13 | 1 | 44.6 ± 2.0 | 4.4 ± 0.5 |
| TVVB ((G) | 14 | 1 | 48.2 ± 2.0 | 4.4 ± 0.5 |
| TVVB ((G) | 15 | 1 | 50.7 ± 2.0 | 4.4 ± 0.5 |
| TVVB ((G) | 16 | 1 | 53.3 ± 2.0 | 4.4 ± 0.5 |
| TVVB ((G) | 17 | 1 | 55.8 ± 2.0 | 4.4 ± 0.5 |
| TVVB ((G) | 18 | 1 | 59.4 ± 2.0 | 4.4 ± 0.5 |
| TVVB ((G) | 19 | 1 | 61.9 ± 2.5 | 4.4 ± 0.5 |
| TVVB ((G) | 20 | 1 | 64.5 ± 2.5 | 4.4 ± 0.5 |
| TVVB ((G) | 21 | 1 | 67.0 ± 2.5 | 4.4 ± 0.5 |
| TVVB ((G) | 22 | 1 | 69.6 ± 2.5 | 4.4 ± 0.5 |
| TVVB ((G) | 23 | 1 | 72.1 ± 2.5 | 4.4 ± 0.5 |
| TVVB ((G) | 24 | 1 | 75.7 ± 2.5 | 4.4 ± 0.5 |
| TVVB ((G) | 24 | 1 | 46.9 ± 2.0 | 10.5±1.0 |
| TVVB ((G) | 30 | 1 | 57.0 ± 2.0 | 9.7 ± 0.5 |
| TVVB ((G) | 36 | 1 | 61.6 ± 2.5 | 10.5±1.0 |
| TVVB ((G) | 40 | 1 | 70.8 ± 2.5 | 9.7 ± 0.5 |
| TVVB ((G) | 42 | 1 | 70.3 ± 2.5 | 10.5±1.0 |
| TVVB ((G) | 48 | 1 | 77.9 ± 2.5 | 10.5±1.0 |
| TVVB ((G) | 54 | 1 | 85.6 ± 2.5 | 10.5±1.0 |
| TVVB ((G) | 60 | 1 | 93.2 ± 2.5 | 10.5±1.0 |
| TVVB | 2 | 1.25 | 9.0 ± 1.0 | 5.0 ± 0.5 |
| TVVB | 3 | 1.25 | 11.9 ± 1.0 | 5.0 ± 0.5 |
| TVVB | 4 | 1.25 | 15.8 ± 1.0 | 5.0 ± 0.5 |
| TVVB | 5 | 1.25 | 19.7 ± 1.0 | 5.0 ± 0.5 |
| TVVB | 6 | 1.25 | 22.6 ± 1.5 | 5.0 ± 0.5 |
| TVVB | 7 | 1.25 | 25.5±1.5 | 5.0 ± 0.5 |
| TVVB | 8 | 1.25 | 28.4 ± 1.5 | 5.0 ± 0.5 |
| TVVB | 9 | 1.25 | 31.3 ± 2.0 | 5.0 ± 0.5 |
| TVVB | 10 | 1.25 | 34.2 ± 2.0 | 5.0 ± 0.5 |
| TVVB | 11 | 1.25 | 37.1 ± 2.0 | 5.0 ± 0.5 |
| TVVB | 12 | 1.25 | 40.0 ± 2.0 | 5.0 ± 0.5 |
| TVVB | 13 | 1.25 | 42.9 ± 2.0 | 5.0 ± 0.5 |
| TVVB | 14 | 1.25 | 46.8 ± 2.0 | 5.0 ± 0.5 |
| TVVB | 15 | 1.25 | 49.7 ± 2.0 | 5.0 ± 0.5 |
| TVVB | 16 | 1.25 | 52.6 ± 2.0 | 5.0 ± 0.5 |
| TVVB | 17 | 1.25 | 55.5 ± 2.0 | 5.0 ± 0.5 |
| TVVB | 18 | 1.25 | 59.4 ± 2.0 | 5.0 ± 0.5 |
| TVVB | 19 | 1.25 | 62.3 ± 2.0 | 5.0 ± 0.5 |
| TVVB | 20 | 1.25 | 65.2 ± 2.0 | 5.0 ± 0.5 |
| TVVB | 21 | 1.25 | 50.9 ± 2.0 | 10.0 ± 1.0 |
| TVVB | 22 | 1.25 | 71.0 ± 2.0 | 5.0 ± 0.5 |
| TVVB | 23 | 1.25 | 73.9 ± 2.0 | 5.0 ± 0.5 |
| TVVB | 24 | 1.25 | 77.8 ± 2.0 | 5.0 ± 0.5 |
| TVVB | 24 | 1.25 | 42.0 ± 2.0 | 12.0 ± 1.0 |
| TVVB | 30 | 1.25 | 54.4 ± 2.0 | 11.1 ± 1.0 |
| TVVB | 36 | 1.25 | 59.6 ± 2.0 | 12.0 ± 1.0 |
| TVVB | 40 | 1.25 | 70.0 ± 2.5 | 11.1 ± 1.0 |
| TVVB | 42 | 1.25 | 68.3 ± 2.5 | 12.0 ± 1.0 |
| TVVB | 48 | 1.25 | 77.0 ± 2.5 | 12.0 ± 1.0 |
| TVVB | 54 | 1.25 | 85.7 ± 2.5 | 12.0 ± 1.0 |
| TVVB | 60 | 1.25 | 94.4 ± 2.5 | 12.0 ± 1.0 |
| TVVB ((G) | 2 | 1.25 | 14.5±1.0 | 5.0 ± 0.5 |
| TVVB ((G) | 3 | 1.25 | 17.4 ± 1.0 | 5.0 ± 0.5 |
| TVVB ((G) | 4 | 1.25 | 21.3 ± 1.5 | 5.0 ± 0.5 |
| TVVB ((G) | 5 | 1.25 | 25.2 ± 1.5 | 5.0 ± 0.5 |
| TVVB ((G) | 6 | 1.25 | 27.1 ± 1.5 | 5.0 ± 0.5 |
| TVVB ((G) | 7 | 1.25 | 31.0 ± 2.0 | 5.0 ± 0.5 |
| TVVB ((G) | 8 | 1.25 | 33.9 ± 2.0 | 5.0 ± 0.5 |
| TVVB ((G) | 9 | 1.25 | 36.8 ± 2.0 | 5.0 ± 0.5 |
| TVVB ((G) | 10 | 1.25 | 39.7 ± 2.0 | 5.0 ± 0.5 |
| TVVB ((G) | 11 | 1.25 | 42.6 ± 2.0 | 5.0 ± 0.5 |
| TVVB ((G) | 12 | 1.25 | 45.5 ± 2.0 | 5.0 ± 0.5 |
| TVVB ((G) | 13 | 1.25 | 49.1 ± 2.0 | 5.0 ± 0.5 |
| TVVB ((G) | 14 | 1.25 | 53.0 ± 2.0 | 5.0 ± 0.5 |
| TVVB ((G) | 15 | 1.25 | 55.9 ± 2.0 | 5.0 ± 0.5 |
| TVVB ((G) | 16 | 1.25 | 58.8 ± 2.0 | 5.0 ± 0.5 |
| TVVB ((G) | 17 | 1.25 | 61.7 ± 2.5 | 5.0 ± 0.5 |
| TVVB ((G) | 18 | 1.25 | 65.6 ± 2.5 | 5.0 ± 0.5 |
| TVVB ((G) | 19 | 1.25 | 68.5 ± 2.5 | 5.0 ± 0.5 |
| TVVB ((G) | 20 | 1.25 | 71.4 ± 2.5 | 5.0 ± 0.5 |
| TVVB ((G) | 21 | 1.25 | 74.3 ± 2.5 | 5.0 ± 0.5 |
| TVVB ((G) | 22 | 1.25 | 77.2 ± 2.5 | 5.0 ± 0.5 |
| TVVB ((G) | 23 | 1.25 | 80.1 ± 2.5 | 5.0 ± 0.5 |
| TVVB ((G) | 24 | 1.25 | 84.0 ± 2.5 | 5.0 ± 0.5 |
| TVVB ((G) | 24 | 1.25 | 51.0 ± 2.0 | 12.5±1.0 |
| TVVB ((G) | 30 | 1.25 | 62.6 ± 2.5 | 11.1 ± 1.0 |
| TVVB ((G) | 36 | 1.25 | 67.8 ± 2.5 | 12.0 ± 1.0 |
| TVVB ((G) | 40 | 1.25 | 78.2 ± 2.5 | 11.1 ± 1.0 |
| TVVB ((G) | 42 | 1.25 | 77.5 ± 2.5 | 12.0 ± 1.0 |
| TVVB ((G) | 48 | 1.25 | 86.2 ± 2.5 | 12.0 ± 1.0 |
| TVVB ((G) | 54 | 1.25 | 94.9 ± 2.5 | 12.0 ± 1.0 |
| TVVB | 2 | 1.5 | 9.3 ± 1.0 | 5.0 ± 0.5 |
| TVVB | 3 | 1.5 | 12.3 ± 1.0 | 5.0 ± 0.5 |
| TVVB | 4 | 1.5 | 16.3 ± 1.0 | 5.0 ± 0.5 |
| TVVB | 5 | 1.5 | 20.3 ± 1.5 | 5.0 ± 0.5 |
| TVVB | 6 | 1.5 | 23.3 ± 1.5 | 5.0 ± 0.5 |
| TVVB | 7 | 1.5 | 26.3 ± 1.5 | 5.0 ± 0.5 |
| TVVB | 8 | 1.5 | 29.3 ± 1.5 | 5.0 ± 0.5 |
| TVVB | 9 | 1.5 | 32.3 ± 2.0 | 5.0 ± 0.5 |
| TVVB | 10 | 1.5 | 35.3 ± 2.0 | 5.0 ± 0.5 |
| TVVB | 11 | 1.5 | 38.3 ± 2.0 | 5.0 ± 0.5 |
| TVVB | 12 | 1.5 | 41.3 ± 2.0 | 5.0 ± 0.5 |
| TVVB | 13 | 1.5 | 44.3 ± 2.0 | 5.0 ± 0.5 |
| TVVB | 14 | 1.5 | 48.3 ± 2.0 | 5.0 ± 0.5 |
| TVVB | 15 | 1.5 | 51.3 ± 2.0 | 5.0 ± 0.5 |
| TVVB | 16 | 1.5 | 54.3 ± 2.0 | 5.0 ± 0.5 |
| TVVB | 17 | 1.5 | 57.3 ± 2.0 | 5.0 ± 0.5 |
| TVVB | 18 | 1.5 | 61.3 ± 2.5 | 5.0 ± 0.5 |
| TVVB | 19 | 1.5 | 64.3 ± 2.5 | 5.0 ± 0.5 |
| TVVB | 20 | 1.5 | 67.3 ± 2.5 | 5.0 ± 0.5 |
| TVVB | 21 | 1.5 | 70.3 ± 2.5 | 5.0 ± 0.5 |
| TVVB | 22 | 1.5 | 73.3 ± 2.5 | 5.0 ± 0.5 |
| TVVB | 23 | 1.5 | 76.3 ± 2.5 | 5.0 ± 0.5 |
| TVVB | 24 | 1.5 | 80.3 ± 2.5 | 5.0 ± 0.5 |
| TVVB | 24 | 1.5 | 43.3 ± 2.0 | 11.8 ± 1.0 |
| TVVB | 30 | 1.5 | 56.1 ± 2.0 | 10.9 ± 1.0 |
| TVVB | 36 | 1.5 | 61.5 ± 2.5 | 11.8 ± 1.0 |
| TVVB | 40 | 1.5 | 72.3 ± 2.5 | 10.9 ± 1.0 |
| TVVB | 42 | 1.5 | 70.5 ± 2.5 | 11.8 ± 1.0 |
| TVVB | 48 | 1.5 | 79.5 ± 2.5 | 11.8 ± 1.0 |
| TVVB | 54 | 1.5 | 88.5 ± 2.5 | 11.8 ± 1.0 |
| TVVB ((G) | 2 | 1.5 | 14.8 ± 1.0 | 5.0 ± 0.5 |
| TVVB ((G) | 3 | 1.5 | 17.8 ± 1.0 | 5.0 ± 0.5 |
| TVVB ((G) | 4 | 1.5 | 21.8 ± 1.5 | 5.0 ± 0.5 |
| TVVB ((G) | 5 | 1.5 | 25.8 ± 1.5 | 5.0 ± 0.5 |
| TVVB ((G) | 6 | 1.5 | 27.8 ± 1.5 | 5.0 ± 0.5 |
| TVVB ((G) | 7 | 1.5 | 31.8 ± 2.0 | 5.0 ± 0.5 |
| TVVB ((G) | 8 | 1.5 | 34.8 ± 2.0 | 5.0 ± 0.5 |
| TVVB ((G) | 9 | 1.5 | 37.8 ± 2.0 | 5.0 ± 0.5 |
| TVVB ((G) | 10 | 1.5 | 40.8 ± 2.0 | 5.0 ± 0.5 |
| TVVB ((G) | 11 | 1.5 | 43.8 ± 2.0 | 5.0 ± 0.5 |
| TVVB ((G) | 12 | 1.5 | 46.8 ± 2.0 | 5.0 ± 0.5 |
| TVVB ((G) | 13 | 1.5 | 50.5 ± 2.0 | 5.0 ± 0.5 |
| TVVB ((G) | 14 | 1.5 | 54.5 ± 2.0 | 5.0 ± 0.5 |
| TVVB ((G) | 15 | 1.5 | 57.5 ± 2.0 | 5.0 ± 0.5 |
| TVVB ((G) | 16 | 1.5 | 60.5 ± 2.5 | 5.0 ± 0.5 |
| TVVB ((G) | 17 | 1.5 | 63.5 ± 2.5 | 5.0 ± 0.5 |
| TVVB ((G) | 18 | 1.5 | 67.5 ± 2.5 | 5.0 ± 0.5 |
| TVVB ((G) | 19 | 1.5 | 70.5 ± 2.5 | 5.0 ± 0.5 |
| TVVB ((G) | 20 | 1.5 | 73.5 ± 2.5 | 5.0 ± 0.5 |
| TVVB ((G) | 21 | 1.5 | 76.5 ± 2.5 | 5.0 ± 0.5 |
| TVVB ((G) | 22 | 1.5 | 79.5 ± 2.5 | 5.0 ± 0.5 |
| TVVB ((G) | 23 | 1.5 | 82.5 ± 2.5 | 5.0 ± 0.5 |
| TVVB ((G) | 24 | 1.5 | 86.5 ± 2.5 | 5.0 ± 0.5 |
| TVVB ((G) | 24 | 1.5 | 52.3 ± 2.0 | 11.8 ± 1.0 |
| TVVB ((G) | 30 | 1.5 | 64.3 ± 2.5 | 10.9 ± 1.0 |
| TVVB ((G) | 36 | 1.5 | 69.7 ± 2.5 | 11.8 ± 1.0 |
| TVVB ((G) | 40 | 1.5 | 80.5 ± 2.5 | 10.9 ± 1.0 |
| TVVB ((G) | 42 | 1.5 | 79.7 ± 2.5 | 11.8 ± 1.0 |
| TVVB ((G) | 48 | 1.5 | 88.7 ± 2.5 | 11.8 ± 1.0 |
| TVVB | 2 | 2 | 9.7 ± 1.0 | 5.4 ± 0.5 |
| TVVB | 3 | 2 | 12.9 ± 1.0 | 5.4 ± 0.5 |
| TVVB | 4 | 2 | 17.1 ± 1.0 | 5.4 ± 0.5 |
| TVVB | 5 | 2 | 21.3 ± 1.5 | 5.4 ± 0.5 |
| TVVB | 6 | 2 | 24.5±1.5 | 5.4 ± 0.5 |
| TVVB | 7 | 2 | 27.7 ± 1.5 | 5.4 ± 0.5 |
| TVVB | 8 | 2 | 30.9 ± 2.0 | 5.4 ± 0.5 |
| TVVB | 9 | 2 | 34.1 ± 2.0 | 5.4 ± 0.5 |
| TVVB | 10 | 2 | 37.3 ± 2.0 | 5.4 ± 0.5 |
| TVVB | 11 | 2 | 40.5 ± 2.0 | 5.4 ± 0.5 |
| TVVB | 12 | 2 | 43.7 ± 2.0 | 5.4 ± 0.5 |
| TVVB | 13 | 2 | 46.9 ± 2.0 | 5.4 ± 0.5 |
| TVVB | 14 | 2 | 51.1 ± 2.0 | 5.4 ± 0.5 |
| TVVB | 15 | 2 | 54.3 ± 2.0 | 5.4 ± 0.5 |
| TVVB | 16 | 2 | 57.5 ± 2.0 | 5.4 ± 0.5 |
| TVVB | 17 | 2 | 60.7 ± 2.5 | 5.4 ± 0.5 |
| TVVB | 18 | 2 | 64.9 ± 2.5 | 5.4 ± 0.5 |
| TVVB | 19 | 2 | 68.1 ± 2.5 | 5.4 ± 0.5 |
| TVVB | 20 | 2 | 71.3 ± 2.5 | 5.4 ± 0.5 |
| TVVB | 21 | 2 | 74.5 ± 2.5 | 5.4 ± 0.5 |
| TVVB | 22 | 2 | 77.7 ± 2.5 | 5.4 ± 0.5 |
| TVVB | 23 | 2 | 80.9 ± 2.5 | 5.4 ± 0.5 |
| TVVB | 24 | 2 | 85.1 ± 2.5 | 5.4 ± 0.5 |
| TVVB | 24 | 2 | 45.7 ± 2.0 | 12.6 ± 1.0 |
| TVVB | 30 | 2 | 59.3 ± 2.0 | 11.6 ± 1.0 |
| TVVB | 36 | 2 | 65.1 ± 2.5 | 12.6 ± 1.0 |
| TVVB | 40 | 2 | 76.6 ± 2.5 | 11.6 ± 1.0 |
| TVVB | 42 | 2 | 74.7 ± 2.5 | 12.6 ± 1.0 |
| TVVB | 48 | 2 | 84.3 ± 2.5 | 12.6 ± 1.0 |
| TVVB | 54 | 2 | 93.9 ± 2.5 | 12.6 ± 1.0 |
| TVVB ((G) | 2 | 2 | 15.2 ± 1.0 | 5.4 ± 0.5 |
| TVVB ((G) | 3 | 2 | 18.4 ± 1.0 | 5.4 ± 0.5 |
| TVVB ((G) | 4 | 2 | 22.6 ± 1.5 | 5.4 ± 0.5 |
| TVVB ((G) | 5 | 2 | 26.8 ± 1.5 | 5.4 ± 0.5 |
| TVVB ((G) | 6 | 2 | 29.0 ± 1.5 | 5.4 ± 0.5 |
| TVVB ((G) | 7 | 2 | 35.2 ± 2.0 | 5.4 ± 0.5 |
| TVVB ((G) | 8 | 2 | 36.4 ± 2.0 | 5.4 ± 0.5 |
| TVVB ((G) | 9 | 2 | 39.6 ± 2.0 | 5.4 ± 0.5 |
| TVVB ((G) | 10 | 2 | 42.8 ± 2.0 | 5.4 ± 0.5 |
| TVVB ((G) | 11 | 2 | 46.0 ± 2.0 | 5.4 ± 0.5 |
| TVVB ((G) | 12 | 2 | 49.2 ± 2.0 | 5.4 ± 0.5 |
| TVVB ((G) | 13 | 2 | 53.1 ± 2.0 | 5.4 ± 0.5 |
| TVVB ((G) | 14 | 2 | 57.3 ± 2.0 | 5.4 ± 0.5 |
| TVVB ((G) | 15 | 2 | 60.5 ± 2.5 | 5.4 ± 0.5 |
| TVVB ((G) | 16 | 2 | 63.7 ± 2.5 | 5.4 ± 0.5 |
| TVVB ((G) | 17 | 2 | 66.9 ± 2.5 | 5.4 ± 0.5 |
| TVVB ((G) | 18 | 2 | 71.1 ± 2.5 | 5.4 ± 0.5 |
| TVVB ((G) | 19 | 2 | 74.3 ± 2.5 | 5.4 ± 0.5 |
| TVVB ((G) | 20 | 2 | 77.5 ± 2.5 | 5.4 ± 0.5 |
| TVVB ((G) | 21 | 2 | 80.7 ± 2.5 | 5.4 ± 0.5 |
| TVVB ((G) | 22 | 2 | 83.9 ± 2.5 | 5.4 ± 0.5 |
| TVVB ((G) | 23 | 2 | 87.1 ± 2.5 | 5.4 ± 0.5 |
| TVVB ((G) | 24 | 2 | 91.3 ± 2.5 | 5.4 ± 0.5 |
| TVVB ((G) | 24 | 2 | 54.7 ± 2.0 | 12.6 ± 1.0 |
| TVVB ((G) | 30 | 2 | 67.5 ± 2.5 | 11.6 ± 1.0 |
| TVVB ((G) | 36 | 2 | 73.3 ± 2.5 | 12.6 ± 1.0 |
| TVVB ((G) | 40 | 2 | 84.8 ± 2.5 | 11.6 ± 1.0 |
| TVVB ((G) | 42 | 2 | 83.9 ± 2.5 | 12.6 ± 1.0 |
| TVVB ((G) | 48 | 2 | 93.5 ± 2.5 | 12.6 ± 1.0 |
| TVVB | 2 | 2.5 | 10.5±1.0 | 5.7 ± 0.5 |
| TVVB | 3 | 2.5 | 14.1 ± 1.0 | 5.7 ± 0.5 |
| TVVB | 4 | 2.5 | 18.7 ± 1.5 | 5.7 ± 0.5 |
| TVVB | 5 | 2.5 | 23.3 ± 1.5 | 5.7 ± 0.5 |
| TVVB | 6 | 2.5 | 26.9 ± 1.5 | 5.7 ± 0.5 |
| TVVB | 7 | 2.5 | 30.5 ± 2.0 | 5.7 ± 0.5 |
| TVVB | 8 | 2.5 | 36.0 ± 2.0 | 5.7 ± 0.5 |
| TVVB | 9 | 2.5 | 37.7 ± 2.0 | 5.7 ± 0.5 |
| TVVB | 10 | 2.5 | 41.3 ± 2.0 | 5.7 ± 0.5 |
| TVVB | 11 | 2.5 | 44.9 ± 2.0 | 5.7 ± 0.5 |
| TVVB | 12 | 2.5 | 48.5 ± 2.0 | 5.7 ± 0.5 |
| TVVB | 13 | 2.5 | 52.1 ± 2.0 | 5.7 ± 0.5 |
| TVVB | 14 | 2.5 | 56.7 ± 2.0 | 5.7 ± 0.5 |
| TVVB | 15 | 2.5 | 60.3 ± 2.5 | 5.7 ± 0.5 |
| TVVB | 16 | 2.5 | 63.9 ± 2.5 | 5.7 ± 0.5 |
| TVVB | 17 | 2.5 | 67.5 ± 2.5 | 5.7 ± 0.5 |
| TVVB | 18 | 2.5 | 72.1 ± 2.5 | 5.7 ± 0.5 |
| TVVB | 19 | 2.5 | 75.7 ± 2.5 | 5.7 ± 0.5 |
| TVVB | 20 | 2.5 | 79.3 ± 2.5 | 5.7 ± 0.5 |
| TVVB | 21 | 2.5 | 82.9 ± 2.5 | 5.7 ± 0.5 |
| TVVB | 22 | 2.5 | 86.5 ± 2.5 | 5.7 ± 0.5 |
| TVVB | 23 | 2.5 | 90.1 ± 2.5 | 5.7 ± 0.5 |
| TVVB | 24 | 2.5 | 94.7 ± 2.5 | 5.7 ± 0.5 |
| TVVB | 24 | 2.5 | 50.5 ± 2.5 | 13.8 ± 1.0 |
| TVVB | 30 | 2.5 | 65.8 ± 2.5 | 12.7 ± 1.0 |
| TVVB | 36 | 2.5 | 72.3 ± 2.5 | 13.8 ± 1.0 |
| TVVB | 40 | 2.5 | 85.3 ± 2.5 | 12.7 ± 1.0 |
| TVVB | 42 | 2.5 | 83.1 ± 2.5 | 13.8 ± 1.0 |
| TVVB | 48 | 2.5 | 93.9 ± 2.5 | 13.8 ± 1.0 |
| TVVB ((G) | 2 | 2.5 | 16.0 ± 1.0 | 5.7 ± 0.5 |
| TVVB ((G) | 3 | 2.5 | 19.6 ± 1.0 | 5.7 ± 0.5 |
| TVVB ((G) | 4 | 2.5 | 24.2 ± 1.5 | 5.7 ± 0.5 |
| TVVB ((G) | 5 | 2.5 | 28.8 ± 1.5 | 5.7 ± 0.5 |
| TVVB ((G) | 6 | 2.5 | 31.4 ± 2.0 | 5.7 ± 0.5 |
| TVVB ((G) | 7 | 2.5 | 38.0 ± 2.0 | 5.7 ± 0.5 |
| TVVB ((G) | 8 | 2.5 | 39.6 ± 2.0 | 5.7 ± 0.5 |
| TVVB ((G) | 9 | 2.5 | 43.2 ± 2.0 | 5.7 ± 0.5 |
| TVVB ((G) | 10 | 2.5 | 46.8 ± 2.0 | 5.7 ± 0.5 |
| TVVB ((G) | 11 | 2.5 | 50.4 ± 2.0 | 5.7 ± 0.5 |
| TVVB ((G) | 12 | 2.5 | 54.0 ± 2.0 | 5.7 ± 0.5 |
| TVVB ((G) | 13 | 2.5 | 58.3 ± 2.0 | 5.7 ± 0.5 |
| TVVB ((G) | 14 | 2.5 | 62.9 ± 2.5 | 5.7 ± 0.5 |
| TVVB ((G) | 15 | 2.5 | 66.5 ± 2.5 | 5.7 ± 0.5 |
| TVVB ((G) | 16 | 2.5 | 70.1 ± 2.5 | 5.7 ± 0.5 |
| TVVB ((G) | 17 | 2.5 | 73.7 ± 2.5 | 5.7 ± 0.5 |
| TVVB ((G) | 18 | 2.5 | 78.3 ± 2.5 | 5.7 ± 0.5 |
| TVVB ((G) | 19 | 2.5 | 81.9 ± 2.5 | 5.7 ± 0.5 |
| TVVB ((G) | 20 | 2.5 | 85.5 ± 2.5 | 5.7 ± 0.5 |
| TVVB ((G) | 21 | 2.5 | 89.1 ± 2.5 | 5.7 ± 0.5 |
| TVVB ((G) | 22 | 2.5 | 92.7 ± 2.5 | 5.7 ± 0.5 |
| TVVB ((G) | 23 | 2.5 | 96.3 ± 2.5 | 5.7 ± 0.5 |
| TVVB ((G) | 24 | 2.5 | 59.5 ± 2.0 | 13.8 ± 1.0 |
| TVVB ((G) | 30 | 2.5 | 74.0 ± 2.5 | 12.7 ± 1.0 |
| TVVB ((G) | 36 | 2.5 | 80.5 ± 2.5 | 13.8 ± 1.0 |
| TVVB ((G) | 40 | 2.5 | 93.5 ± 2.5 | 12.7 ± 1.0 |
| TVVB ((G) | 42 | 2.5 | 92.3 ± 2.5 | 13.8 ± 1.0 |
| TVVB | 2 | 4 | 12.1 ± 1.0 | 6.8 ± 0.5 |
| TVVB | 3 | 4 | 16.5±1.0 | 6.8 ± 0.5 |
| TVVB | 4 | 4 | 21.9 ± 1.5 | 6.8 ± 0.5 |
| TVVB | 5 | 4 | 27.3 ± 1.5 | 6.8 ± 0.5 |
| TVVB | 6 | 4 | 31.7 ± 2.0 | 6.8 ± 0.5 |
| TVVB | 7 | 4 | 36.1 ± 2.0 | 6.8 ± 0.5 |
| TVVB | 8 | 4 | 40.5 ± 2.0 | 6.8 ± 0.5 |
| TVVB | 9 | 4 | 44.9 ± 2.0 | 6.8 ± 0.5 |
| TVVB | 10 | 4 | 49.3 ± 2.0 | 6.8 ± 0.5 |
| TVVB | 11 | 4 | 53.7 ± 2.0 | 6.8 ± 0.5 |
| TVVB | 12 | 4 | 58.1 ± 2.0 | 6.8 ± 0.5 |
| TVVB | 13 | 4 | 62.5 ± 2.5 | 6.8 ± 0.5 |
| TVVB | 14 | 4 | 67.9 ± 2.5 | 6.8 ± 0.5 |
| TVVB | 15 | 4 | 72.3 ± 2.5 | 6.8 ± 0.5 |
| TVVB | 16 | 4 | 76.7 ± 2.5 | 6.8 ± 0.5 |
| TVVB | 17 | 4 | 81.1 ± 2.5 | 6.8 ± 0.5 |
| TVVB | 18 | 4 | 86.5 ± 2.5 | 6.8 ± 0.5 |
| TVVB | 19 | 4 | 90.9 ± 2.5 | 6.8 ± 0.5 |
| TVVB | 24 | 4 | 60.1 ± 2.5 | 16.1 ± 1.0 |
| TVVB | 30 | 4 | 78.8 ± 2.5 | 14.8 ± 1.0 |
| TVVB | 36 | 4 | 86.7 ± 2.5 | 16.1 ± 1.0 |
| TVVB | 40 | 4 | 102.5 ± 2.5 | 14.8 ± 1.0 |
| TVVB | 42 | 4 | 99.9 ± 2.5 | 16.1 ± 1.0 |
| TVVB ((G) | 2 | 4 | 17.6 ± 1.0 | 6.8 ± 0.5 |
| TVVB ((G) | 3 | 4 | 22.0 ± 1.5 | 6.8 ± 0.5 |
| TVVB ((G) | 4 | 4 | 27.4 ± 1.5 | 6.8 ± 0.5 |
| TVVB ((G) | 5 | 4 | 32.8 ± 2.0 | 6.8 ± 0.5 |
| TVVB ((G) | 6 | 4 | 36.2 ± 2.0 | 6.8 ± 0.5 |
| TVVB ((G) | 7 | 4 | 41.6 ± 2.0 | 6.8 ± 0.5 |
| TVVB ((G) | 8 | 4 | 46.0 ± 2.0 | 6.8 ± 0.5 |
| TVVB ((G) | 9 | 4 | 50.4 ± 2.0 | 6.8 ± 0.5 |
| TVVB ((G) | 10 | 4 | 54.8 ± 2.0 | 6.8 ± 0.5 |
| TVVB ((G) | 11 | 4 | 59.2 ± 2.0 | 6.8 ± 0.5 |
| TVVB ((G) | 12 | 4 | 63.6 ± 2.5 | 6.8 ± 0.5 |
| TVVB ((G) | 13 | 4 | 68.7 ± 2.5 | 6.8 ± 0.5 |
| TVVB ((G) | 14 | 4 | 74.1 ± 2.5 | 6.8 ± 0.5 |
| TVVB ((G) | 15 | 4 | 78.5 ± 2.5 | 6.8 ± 0.5 |
| TVVB ((G) | 16 | 4 | 82.9 ± 2.5 | 6.8 ± 0.5 |
| TVVB ((G) | 17 | 4 | 87.3 ± 2.5 | 6.8 ± 0.5 |
| TVVB ((G) | 18 | 4 | 92.7 ± 2.5 | 6.8 ± 0.5 |
| TVVB ((G) | 24 | 4 | 69.1 ± 2.5 | 16.1 ± 1.0 |
| TVVB ((G) | 30 | 4 | 87.0 ± 2.5 | 14.8 ± 1.0 |
| TVVB ((G) | 36 | 4 | 94.9 ± 2.5 | 16.1 ± 1.0 |
| TVVB | 2 | 6 | 13.5±1.0 | 7.5 ± 0.5 |
| TVVB | 3 | 6 | 18.6 ± 1.0 | 7.5 ± 0.5 |
| TVVB | 4 | 6 | 26.9 ± 1.5 | 7.5 ± 0.5 |
| TVVB | 5 | 6 | 32.0 ± 2.0 | 7.5 ± 0.5 |
| TVVB | 6 | 6 | 38.7 ± 2.0 | 7.5 ± 0.5 |
| TVVB | 7 | 6 | 42.2 ± 2.0 | 7.5 ± 0.5 |
| TVVB | 8 | 6 | 48.9 ± 2.0 | 7.5 ± 0.5 |
| TVVB | 9 | 6 | 54.0 ± 2.0 | 7.5 ± 0.5 |
| TVVB | 10 | 6 | 59.1 ± 2.5 | 7.5 ± 0.5 |
| TVVB | 11 | 6 | 62.6 ± 2.5 | 7.5 ± 0.5 |
| TVVB | 12 | 6 | 67.7 ± 2.5 | 7.5 ± 0.5 |
| TVVB | 13 | 6 | 72.8 ± 2.5 | 7.5 ± 0.5 |
| TVVB | 14 | 6 | 79.5 ± 2.5 | 7.5 ± 0.5 |
| TVVB | 15 | 6 | 84.6 ± 2.5 | 7.5 ± 0.5 |
| TVVB | 16 | 6 | 89.7 ± 2.5 | 7.5 ± 0.5 |
| TVVB | 17 | 6 | 94.8 ± 2.5 | 7.5 ± 0.5 |
| TVVB | 24 | 6 | 68.7 ± 2.5 | 18.2 ± 1.0 |
| TVVB | 30 | 6 | 90.1 ± 2.5 | 16.7 ± 1.0 |
| TVVB ((G) | 2 | 6 | 22.5±1.5 | 7.5 ± 0.5 |
| TVVB ((G) | 3 | 6 | 27.6 ± 1.5 | 7.5 ± 0.5 |
| TVVB ((G) | 4 | 6 | 35.9 ± 2.0 | 7.5 ± 0.5 |
| TVVB ((G) | 5 | 6 | 41.0 ± 2.0 | 7.5 ± 0.5 |
| TVVB ((G) | 6 | 6 | 46.1 ± 2.0 | 7.5 ± 0.5 |
| TVVB ((G) | 7 | 6 | 51.2 ± 2.0 | 7.5 ± 0.5 |
| TVVB ((G) | 8 | 6 | 57.9 ± 2.0 | 7.5 ± 0.5 |
| TVVB ((G) | 9 | 6 | 63.0 ± 2.5 | 7.5 ± 0.5 |
| TVVB ((G) | 10 | 6 | 68.1 ± 2.5 | 7.5 ± 0.5 |
| TVVB ((G) | 11 | 6 | 71.6 ± 2.5 | 7.5 ± 0.5 |
| TVVB ((G) | 12 | 6 | 76.7 ± 2.5 | 7.5 ± 0.5 |
| TVVB ((G) | 13 | 6 | 81.8 ± 2.5 | 7.5 ± 0.5 |
| TVVB ((G) | 14 | 6 | 88.5 ± 2.5 | 7.5 ± 0.5 |
| TVVB ((G) | 15 | 6 | 93.6 ± 2.5 | 7.5 ± 0.5 |
| TVVB ((G) | 24 | 6 | 78.7 ± 2.5 | 18.2 ± 1.0 |
| TVVB ((G) | 30 | 6 | 99.3 ± 2.5 | 16.7 ± 1.0 |
| TVVB | 2 | 10 | 17.1 ± 1.0 | 9.7 ± 0.5 |
| TVVB | 3 | 10 | 24.0 ± 1.5 | 9.7 ± 0.5 |
| TVVB | 4 | 10 | 34.5 ± 2.0 | 9.7 ± 0.5 |
| TVVB | 5 | 10 | 41.4 ± 2.0 | 9.7 ± 0.5 |
| TVVB | 6 | 10 | 50.1 ± 2.0 | 9.7 ± 0.5 |
| TVVB | 7 | 10 | 55.2 ± 2.0 | 9.7 ± 0.5 |
| TVVB | 8 | 10 | 63.9 ± 2.5 | 9.7 ± 0.5 |
| TVVB | 9 | 10 | 70.8 ± 2.5 | 9.7 ± 0.5 |
| TVVB | 10 | 10 | 77.7 ± 2.5 | 9.7 ± 0.5 |
| TVVB | 11 | 10 | 82.8 ± 2.5 | 9.7 ± 0.5 |
| TVVB | 12 | 10 | 89.7 ± 2.5 | 9.7 ± 0.5 |
| TVVB | 24 | 10 | 90.7 ± 2.5 | 23.5±1.0 |
| TVVB ((G) | 2 | 10 | 26.1 ± 1.5 | 9.7 ± 0.5 |
| TVVB ((G) | 3 | 10 | 33.0 ± 2.0 | 9.7 ± 0.5 |
| TVVB ((G) | 4 | 10 | 43.5 ± 2.0 | 9.7 ± 0.5 |
| TVVB ((G) | 5 | 10 | 50.4 ± 2.0 | 9.7 ± 0.5 |
| TVVB ((G) | 6 | 10 | 57.3 ± 2.0 | 9.7 ± 0.5 |
| TVVB ((G) | 7 | 10 | 64.2 ± 2.5 | 9.7 ± 0.5 |
| TVVB ((G) | 8 | 10 | 72.9 ± 2.5 | 9.7 ± 0.5 |
| TVVB ((G) | 9 | 10 | 79.8 ± 2.5 | 9.7 ± 0.5 |
| TVVB ((G) | 10 | 10 | 86.7 ± 2.5 | 9.7 ± 0.5 |
| TVVB ((G) | 11 | 10 | 91.8 ± 2.5 | 9.7 ± 0.5 |
| TVVB | 2 | 16 | 19.1 ± 1.0 | 10.7 ± 1.0 |
| TVVB | 3 | 16 | 27.0 ± 1.5 | 10.7 ± 1.0 |
| TVVB | 4 | 16 | 38.5 ± 2.0 | 10.7 ± 1.0 |
| TVVB | 5 | 16 | 46.4 ± 2.0 | 10.7 ± 1.0 |
| TVVB | 6 | 16 | 56.1 ± 2.0 | 10.7 ± 1.0 |
| TVVB | 7 | 16 | 62.2 ± 2.5 | 10.7 ± 1.0 |
| TVVB | 8 | 16 | 71.9 ± 2.5 | 10.7 ± 1.0 |
| TVVB | 9 | 16 | 79.8 ± 2.5 | 10.7 ± 1.0 |
| TVVB | 10 | 16 | 87.7 ± 2.5 | 10.7 ± 1.0 |
| TVVB | 11 | 16 | 93.8 ± 2.5 | 10.7 ± 1.0 |
| TVVB ((G) | 2 | 16 | 28.1 ± 1.5 | 10.7 ± 1.0 |
| TVVB ((G) | 3 | 16 | 36.0 ± 2.0 | 10.7 ± 1.0 |
| TVVB ((G) | 4 | 16 | 47.5 ± 2.0 | 10.7 ± 1.0 |
| TVVB ((G) | 5 | 16 | 55.4 ± 2.0 | 10.7 ± 1.0 |
| TVVB ((G) | 6 | 16 | 63.3 ± 2.5 | 10.7 ± 1.0 |
| TVVB ((G) | 7 | 16 | 71.2 ± 2.5 | 10.7 ± 1.0 |
| TVVB ((G) | 8 | 16 | 80.9 ± 2.5 | 10.7 ± 1.0 |
| TVVB ((G) | 9 | 16 | 88.8 ± 2.5 | 10.7 ± 1.0 |
| TVVB | 2 | 25 | 23.4 ± 1.5 | 12.8 ± 1.0 |
| TVVB | 3 | 25 | 33.2 ± 2.0 | 12.8 ± 1.0 |
| TVVB | 4 | 25 | 47.0 ± 2.0 | 12.8 ± 1.0 |
| TVVB | 5 | 25 | 56.8 ± 2.0 | 12.8 ± 1.0 |
| TVVB | 6 | 25 | 68.6 ± 2.5 | 12.8 ± 1.0 |
| TVVB | 7 | 25 | 76.4 ± 2.5 | 12.8 ± 1.0 |
| TVVB | 8 | 25 | 88.2 ± 2.5 | 12.8 ± 1.0 |
| TVVB | 9 | 25 | 98.0 ± 2.5 | 12.8 ± 1.0 |
| TVVB ((G) | 2 | 25 | 34.6 ± 2.0 | 12.8 ± 1.0 |
| TVVB ((G) | 3 | 25 | 44.4 ± 2.0 | 12.8 ± 1.0 |
| TVVB ((G) | 4 | 25 | 58.2 ± 2.0 | 12.8 ± 1.0 |
| TVVB ((G) | 5 | 25 | 68.0 ± 2.5 | 12.8 ± 1.0 |
| TVVB ((G) | 6 | 25 | 77.8 ± 2.5 | 12.8 ± 1.0 |
| TVVB ((G) | 7 | 25 | 87.6 ± 2.5 | 12.8 ± 1.0 |
| TVVB | 2 | 35 | 28.6 ± 1.5 | 15.2 ± 1.0 |
| TVVB | 3 | 35 | 40.6 ± 2.0 | 15.2 ± 1.0 |
| TVVB | 4 | 35 | 56.6 ± 2.0 | 15.2 ± 1.0 |
| TVVB | 5 | 35 | 68.6 ± 2.5 | 15.2 ± 1.0 |
| TVVB | 6 | 35 | 82.6 ± 2.5 | 15.2 ± 1.0 |
| TVVB | 7 | 35 | 92.6 ± 2.5 | 15.2 ± 1.0 |
| TVVB ((G) | 2 | 35 | 40.2 ± 2.0 | 15.2 ± 1.0 |
| TVVB ((G) | 3 | 35 | 52.2 ± 2.0 | 15.2 ± 1.0 |
| TVVB ((G) | 4 | 35 | 68.2 ± 2.5 | 15.2 ± 1.0 |
| TVVB ((G) | 5 | 35 | 80.2 ± 2.5 | 15.2 ± 1.0 |
| TVVB ((G) | 6 | 35 | 92.2 ± 2.5 | 15.2 ± 1.0 |
| TVVB | 2 | 50 | 35.2 ± 2.0 | 17.4 ± 1.0 |
| TVVB | 3 | 50 | 51.4 ± 2.0 | 17.4 ± 1.0 |
| TVVB | 4 | 50 | 67.6 ± 2.5 | 17.4 ± 1.0 |
| TVVB | 5 | 50 | 81.8 ± 2.5 | 17.4 ± 1.0 |
| TVVB ((G) | 2 | 50 | 46.8 ± 2.0 | 17.4 ± 1.0 |
| TVVB ((G) | 3 | 50 | 63.0 ± 2.5 | 17.4 ± 1.0 |
| TVVB ((G) | 4 | 50 | 79.2 ± 2.0 | 17.4 ± 1.0 |
| TVVB | 2 | 70 | 38.8 ± 2.0 | 19.4 ± 1.0 |
| TVVB | 3 | 70 | 56.8 ± 2.0 | 19.4 ± 1.0 |
| TVVB | 4 | 70 | 74.8 ± 2.5 | 19.4 ± 1.0 |
| TVVB | 5 | 70 | 90.8 ± 2.5 | 19.4 ± 1.0 |
| TVVB ((G) | 2 | 70 | 50.4 ± 2.0 | 19.4 ± 1.0 |
| TVVB ((G) | 3 | 70 | 68.4 ± 2.5 | 19.4 ± 1.0 |
| TVVB ((G) | 4 | 70 | 86.4 ± 2.5 | 19.4 ± 1.0 |
| TVVB | 2 | 95 | 43.0 ± 2.0 | 21.6 ± 1.0 |
| TVVB | 3 | 95 | 63.0 ± 2.5 | 21.6 ± 1.0 |
| TVVB | 4 | 95 | 83.0 ± 2.5 | 21.6 ± 1.0 |
| TVVB ((G) | 2 | 95 | 54.6 ± 2.0 | 21.6 ± 1.0 |
| TVVB ((G) | 3 | 95 | 74.6 ± 2.5 | 21.6 ± 1.0 |
Contacto
Otros productos
-
Cable flexible plano del elevador que viaja con el cable de la cámara de televisión en el color gris TVVB2G 2x2Px0.75+TV
-
Cable flexible plano especial del elevador que viaja con el certificado del CE en base del manojo en el color gris TVVB 54x0.75
-
Cable que viaja flexible plano para el elevador con el certificado TVVB 48x0.75 del CE con la chaqueta de PVC especial
-
Cable flexible plano del elevador que viaja con el cable de la cámara de televisión en el color gris TVVBG-STP CAT6E
-
Cable que viaja flexible plano para el elevador con el certificado TVVB 4x4 del CE con la chaqueta de PVC especial
-
Cable flexible plano del elevador que viaja con el cable de la cámara de televisión en color gris
